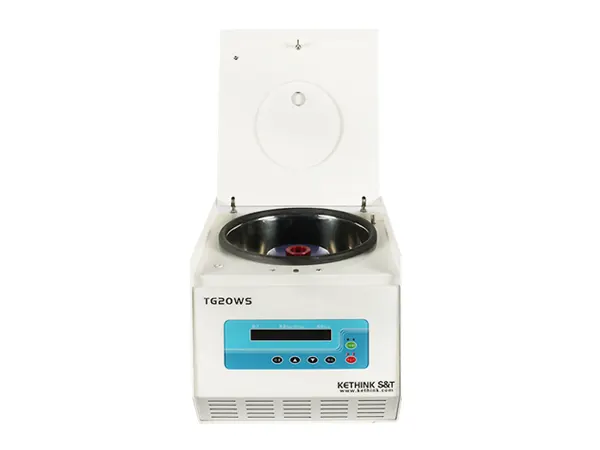

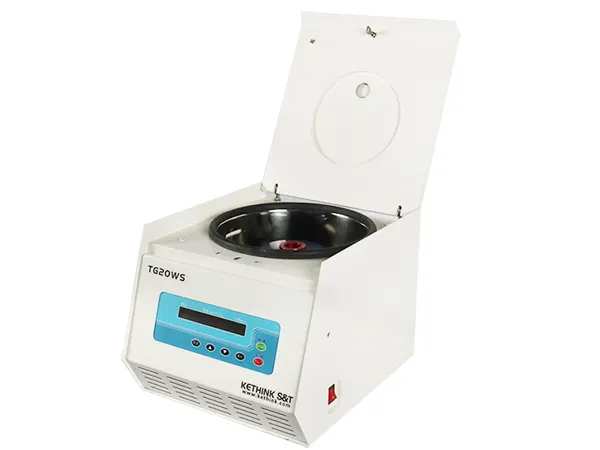

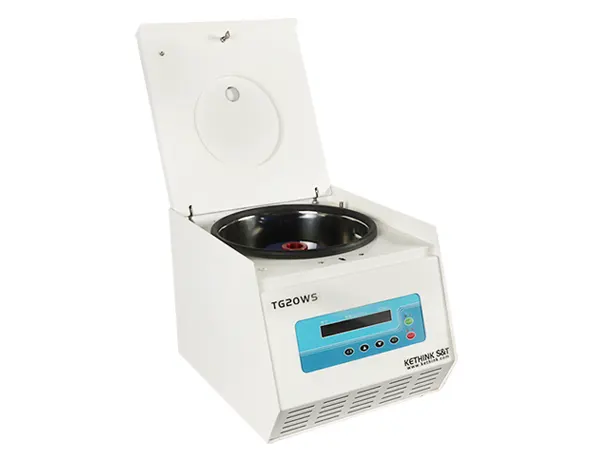

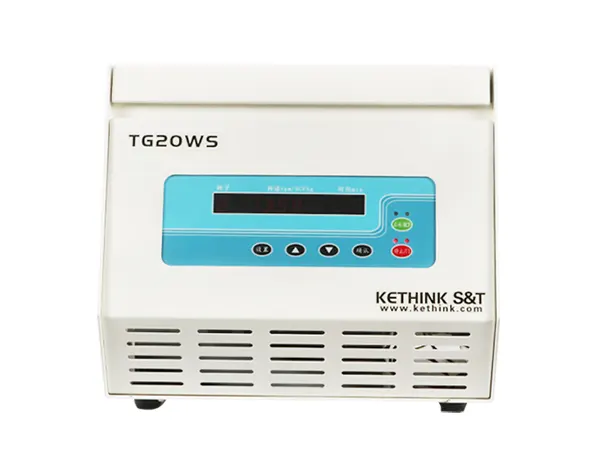

Clinical centrifuge machine, benchtop
Clinical benchtop centrifuge designed for benchtop use in clinical settings such as hospitals, research labs, etc.; used to process blood and other clinical samples at slower speeds. Available in a variety of capacities and speed ranges.
- Model: KT-TG20WS
- Max Speed: 20000rpm
- Max RCF: 27816xg
- Max Capacity: 4*100ml
- Speed Accuracy: ±10rpm
- Timer Range: 1-99min/9h59m
- Display: LED/LCD
- Motor: AC Inverter Motor
- Power Supply: AC 220V 50HZ 10A
- Power: 700W
- Full Noise: ≤58db(A)
- Net Weight: 35 kg
- Device Dimension: 240*260*250mm ( L*W*H )
What is clinical centrifuge?
Clinical centrifuges are low speed devices used for rapid production of PPP and PRP as well as separation of serum, urea, blood samples and other routine applications in hospitals, research laboratories. If your laboratory has requirements for in vitro diagnostic (IVD) medical devices, look for certifications (CE, cTUVus and FCC). Optional adapters accommodate a variety of tube sizes, including standard tapered tubes and round bottom blood collection tubes. Units are available that include cell culture processing, blood sample preparation and microplate application functions. Clinical testing requires exceptional quality, repeatability and reliable performance.

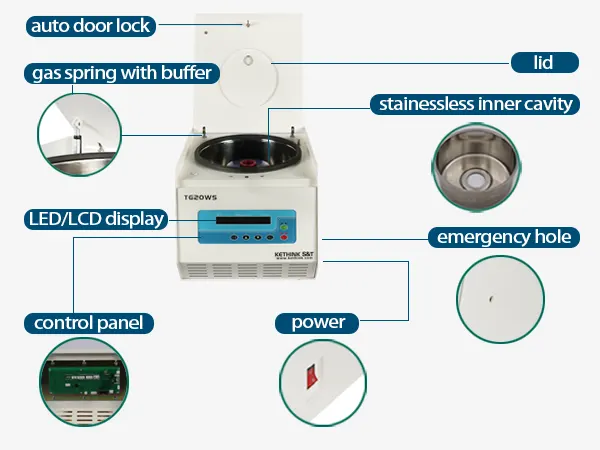

Clinical Centrifuge Drawing
The clinical centrifuge is an ideal separation equipment in the fields of biology, medicine, pharmacy, and epidemic prevention. The working principle of the clinical centrifuge is mainly divided into two parts: the centrifugal part and the freezing part.The basic structure of the clinical centrifuge includes: drive system,control system,refrigeration system,safety protection system,rotor,shell, lid, inner tank, etc. The RPM, centrifuge time & the centrifuge temperature can be controlled by program of control system.
Clinical Centrifuge Rotor
No | ITEM | MAX SPEED(rpm) | MAX RCF(xg) | VOLUME(ml) | TUBE SIZE(mm) |
NO.1 | Angle rotor | 20000rpm | 27816xg | 12*1.5/2.2ml | Φ10*42 |
NO.2 | Angle rotor | 16000rpm | 20653xg | 24*1.5/2.2ml | Φ 10 *42 |
NO.3 | Angle rotor | 14000rpm | 19450xg | 30*1.5/2.2ml | Φ10*42 |
NO.4 | Angle rotor | 13000rpm | 17930xg | 48*1.5/2.2ml | Φ10*42 |
NO.5 | Angle rotor | 14500rpm | 21807xg | 30*0.2/0.5ml | Φ8*30 |
NO.6 | Angle rotor | 14500rpm | 21807xg | 48* 0.2/0.5ml | Φ8*33 |
NO.7 | Angle rotor | 15000rpm | 19350xg | 8/10*5ml | Φ14*54 |
NO.8 | Angle rotor | 15000rpm | 19350xg | 16 * 5ml | Φ14*54 |
NO.9 | Angle rotor | 14000rpm | 16370xg | 12*7ml | Φ15*62 |
NO.10 | Angle rotor | 14000rpm | 16460xg | 6*10ml | Φ16* 87 |
NO.11 | Angle rotor | 15000rpm | 22680xg | 12*10ml | Φ16*87 |
N0.12 | Angle rotor | 15000rpm | 22680xg | 8*15ml | Φ16*118 |
NO.13 | Angle rotor | 5000rpm | 3515xg | 24*15ml | Φ16*118 |
NO.14 | Angle rotor | 5000rpm | 3830xg | 30 *15ml | Φ16*118 |
NO.15 | Angle rotor | 15000rpm | 22680xg | 8*20ml | Φ22*104 |
NO.16 | Angle rotor | 14000rpm | 19060xg | 6*30ml | Φ25*94 |
NO.17 | Angle rotor | 13500rpm | 18950xg | 4*50ml | Φ29*106 |
NO.18 | Angle rotor | 12000rpm | 14856xg | 6*50ml | Φ29*106 |
NO.19 | Angle rotor | 10000rpm | 10813xg | 6*70ml | Φ32*150 |
NO.20 | Angle rotor | 12000rpm | 15635xg | 4*100ml | Φ37*124 |
NO.21 | Angle rotor | 12000rpm | 15869xg | 24pcs capillaries | Φ4*100 |
