Lab Centrifuge Machine

    • Lab centrifuge machine, benchtop 21000RPM

    • Model: KT-TGL20E(LED) KT-TGL20ER(LCD)
    • Max Speed: 21000rpm
    • Max RCF: 30930xg
    • Max Capacity: 6*100ml
    • Speed Accuracy: ± 10rpm
    • Temperature Range: -20°C ~ +40°C
    • Temperature Accuracy: ±1°C
    • Display: LED/LCD
    • Timer Range: 1-99m/9h59min
    • Motor: brushless frequency conversion motor
    • Power Supply: AC 220V 50HZ 10A
    • Compressed Units: Imported environmentally friendly refrigerant
    • Power: 1100W
    • Noise: ≤62db
    • Device Dimension: 510 * 630 * 380mm（L*W*H）
    • Net Weight: 110 kg
    SEND INQUIRY

    Description

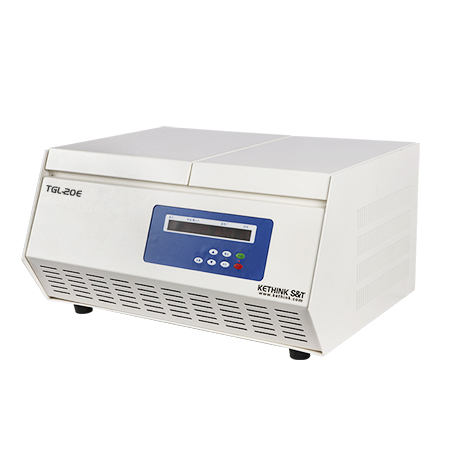

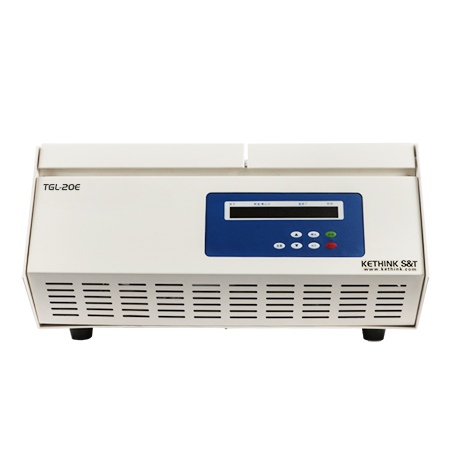

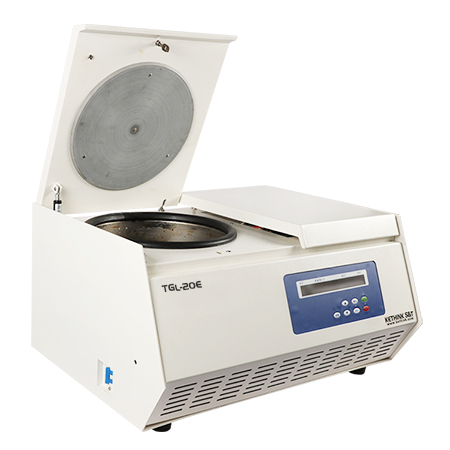

    Lab centrifuge machine TGL20E is an essential piece of equipment for modern labs ensuring optimal separation effect. It can generate exraordinary rotating speed up to 30930xg with maximum 6*100ml samples capacity in a compact table design. 10 program can be recalled automatically after rotor is auto detected, need no additional effort to manually adjust the parameters. It fit with various rotor type for most standard applications. Its powerful refrigeration system with advanced temperature management helps to keep your samples safe

    Feature

    • Adopt carbon-free brushless frequency conversion motor to adjust the speed; maintenance-free, high torque, fast lifting speed.
    • Adopt microcomputer processor for precise control, blue backlight LCD / LED screen display speed, centrifugal force operating parameters and RCF value.
    • 10 sets of programs can be stored and recalled, and 10 kinds of lifting speeds are available for selection.
    • Door cover adopt independent motor servo, reduce operator labor intensity, automatic protection for over-speed and over-temperature, unbalanced protection.
    • Body is made of high-quality steel structure and three-stage vibration reduction to ensure safety and the best centrifugal effect.
    • Unique design of spring cone sleeve is used to connect rotor and main shaft,loading and unloading of the rotor is quick and simple.
    • Equipped with a variety of rotors with different specifications, you can choose different rotors according to the centrifuge and sample.

    A centrifuge in a laboratory rotates Specification

    NOITEMMAX SPEED (rpm)MAX RCF (xg)VOLUME(ml)TUBE SIZE (mm)
    N0.1Angle rotor21000rpm30930xg12*1.5/2.2mlΦ10*42
    N0.2Angle rotor17000rpm26417xg24*1.5/2.2mlΦ10*42
    N0.3Angle rotor13500rpm19340xg30*1.5/2.2mlΦ10*42
    N0.4Angle rotor13000rpm17930xg48*1.5/2.2mlΦ10*42
    N0.5Angle rotor18000rpm26635xg30*0.2/0.5mlΦ8*30
    N0.6Angle rotor15000rpm22920xg48*0.2/0.5mlΦ8*33
    N0.7Angle rotor18500rpm24305xg8*5mlΦ14*54
    N0.8Angle rotor16500rpm22020xg10*5mlΦ14*54
    N0.9Angle rotor16500rpm22150xg16*5mlΦ14*54
    NO.10Angle rotor16000rpm21380xg12*7mlΦ15*62
    N0.11Angle rotor16000rpm21528xg6*10mlΦ16*87
    N0.12Angle rotor15000rpm22680xg12*10mlΦ16*87
    N0.13Angle rotor15000rpm22680xg8*15mlΦ16*118
    N0.14Angle rotor5000rpm3515xg24*15mlΦ16*118
    N0.15Angle rotor5000rpm3830xg30*15mlΦ16*118
    N0.16Angle rotor15000rpm22680xg8*20mlΦ22*104
    N0.17Angle rotor15000rpm13856xg3*8*0.2ml(PCR tube)Φ6*22
    N0.18Angle rotor14000rpm12826xg6*8*0.2ml(PCR tube)Φ6*22
    N0.19Angle rotor14000rpm19060xg6*30mlΦ25*94
    NO.20Angle rotor13500rpm18950xg4*50mlΦ29*106
    N0.21Angle rotor13000rpm18840xg6*50mlΦ29*106
    NO.22Angle rotor12000rpm15635xg6*70mlΦ32*150
    NO.23Angle rotor12000rpm15635xg4*100mlΦ37*124
    NO.24Angle rotor10000rpm11380xg6*100mlΦ37*124
    NO.25Angle rotor12000rpm15869xg24pcs capillariesΦ4*100
    NO.26Horizontal ELISA Plate Rotor4000rpm2310xg2*2*48 hole
