Large Capacity Centrifuge, Refrigerated

Large capacity refrigerated centrifuge, high speed | KT – TGL16D

KT-TGL16D is a desktop large capacity refrigerated centrifuge designed for large volume daily-working laboratories. The centrifuge has the characteristics of both a high-speed and a refrigerated. The maximum speed can reach 16500rpm, and it is compatible with large and small volume sample processing. The maximum capacity can reach 6*1000ml, and the refrigeration range is -20°C ~ +40°C, suitable for freezing centrifugation of all samples with a total capacity of up to 6000ml. By choosing different types of horizontal, angle rotor and even customized rotors, a series of tubes of various capacities and shapes can be used flexibly.

Features

Maintenance-free AC variable frequency motor drive speed control microcomputer control, high precision and low noise.
Color digital and LCD liquid screen display speed, centrifugal force; temperature and time in the centrifugal cavity can be reset at any time during operation without stopping the machine.
Centrifugal force and RCF value can be set separately, and can be exchanged and observed at any time.
Body is made of high-quality steel structure, built-in stainless steel inner cavity, stainless steel protective inner sleeve to ensure safe use.
Imported fluorine-free compressor unit, double-cycle refrigeration, strong cooling and heat exchange capability, and high temperature control accuracy.
Door lock adopts the intelligent electronic lock function, which is convenient for operation and improves the safety of use.

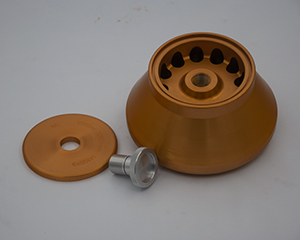

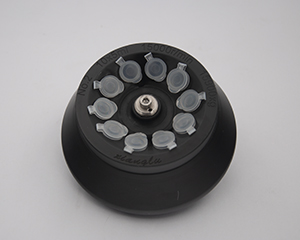

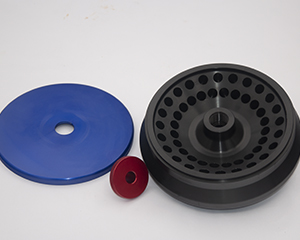

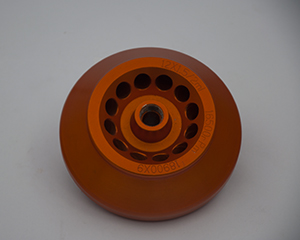

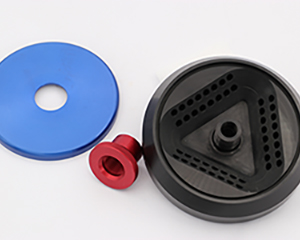

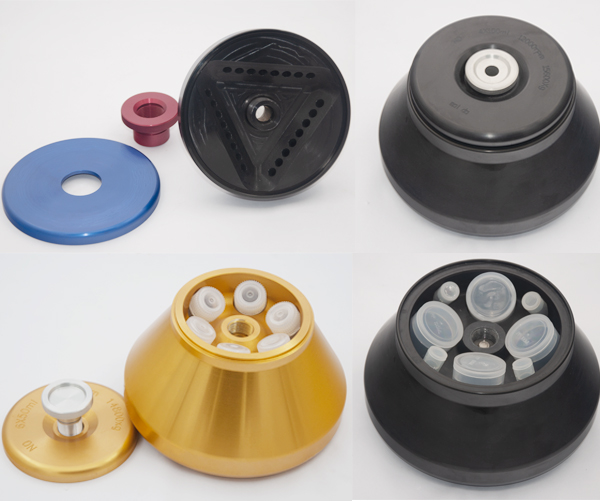

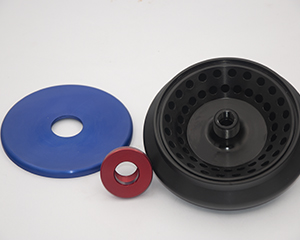

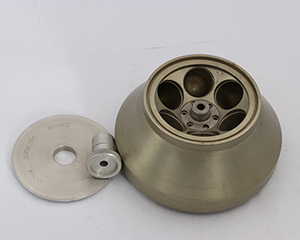

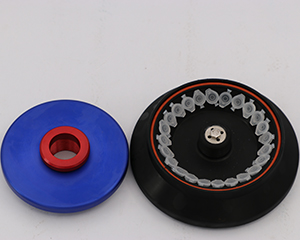

Equipped with a variety of rotors of different specifications, rotors of different specifications can be selected according to centrifugation and samples.

Application

radioimmunity, medical laboratory / laboratory, biochemistry, scientific research laboratory, etc.

Download Rotors Data

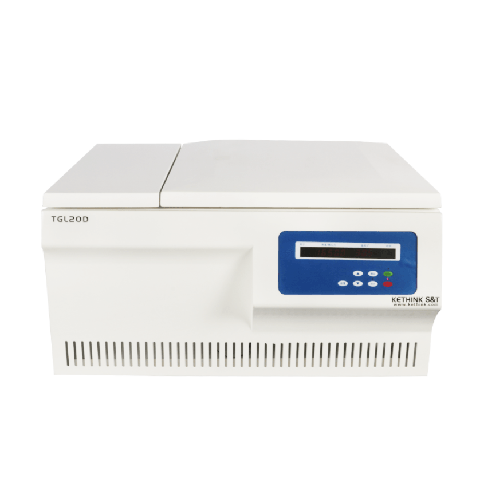

High Speed Large Capacity Refrigerated Centrifuges

Model	Max Speed	Max RCF	Max Capacity	Speed Accuracy	Timer Range	Temp Range	Temp Accuracy	Display	Motor	Power	Full Noise
KT-TGL20D KT-TGL20DR	21000rpm	30930 xg	4*750ml	± 10rpm	1-99min/9h99min	-20°C ~ +40°C	土1°C	LED/LCD	AC Inverter Motor	AC 220V 50HZ 10A，1.4KW	≤62dB(A)
KT-TGL18D KT-TGL18DR	18000rpm	26600 xg	4*500ml	± 10rpm	1-99m/9h99min	-20°C 〜+40°C	土1°C	LED/LCD	AC Inverter Motor	AC 220V 50HZ 10A，1.3KW	≤62dB（A）

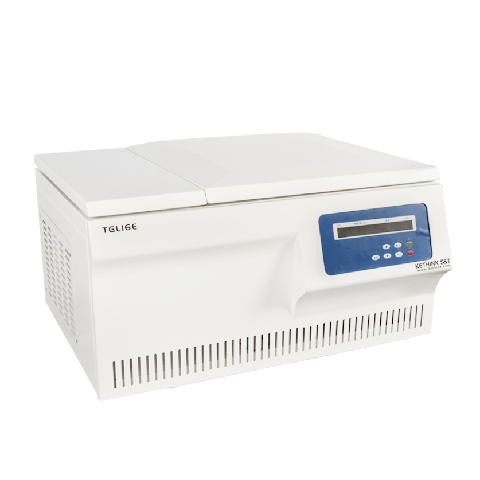

KT-TGL16E KT-TGL16ER	16000rpm	17800xg	4*500ml	± 10rpm	1-99m/9h99min	-20°C 〜+40°C	土1°C	LED/LCD	AC Inverter Motor	AC 220V 50HZ 10A，1.2KW	≤62dB(A)
KT-TGL16D KT-TGL16DR	16500 rpm	18900 xg	4*500ml	± 10rpm	1-99m/9h99min	-20°C 〜+40°C	土1°C	LED/LCD	AC Inverter Motor	AC 220V 50HZ 10A，1.2KW	≤62dB(A)

Features

AC variable frequency motor,microcomputer control, high precision and low noise.
LED/LCD display speed, centrifugal force; temperature and time in the centrifugal cavity can be reset at any time during operation without stopping the machine.
Centrifugal force & RCF value can be set separately, and can be exchanged and observed at any time.
Various customized rotors are available.

Imported fluorine-free compressor unit, double-cycle refrigeration, strong cooling and heat exchange capability, and high temperature control accuracy.
Intelligent electronic lock function, which is convenient for operation and improves the safety of use.
High-quality steel body shell, built-in stainless steel inner cavity to ensure safe use.

PCB board

LED/LCD display

brushless motor

compressor

cooling system

Large volume centrifuge machine, floor standing | KT-GL26M

The GL26M is a floor standing refrigerated centrifuge with a 7″ LCD touch screen that uses a “window-based” configuration and 100 program storage for easy operation and programming/editing. Includes user ID and protocol management, with history tracking facility and automatic Rotors identified by unbalance, overheating and overspeed alarm systems

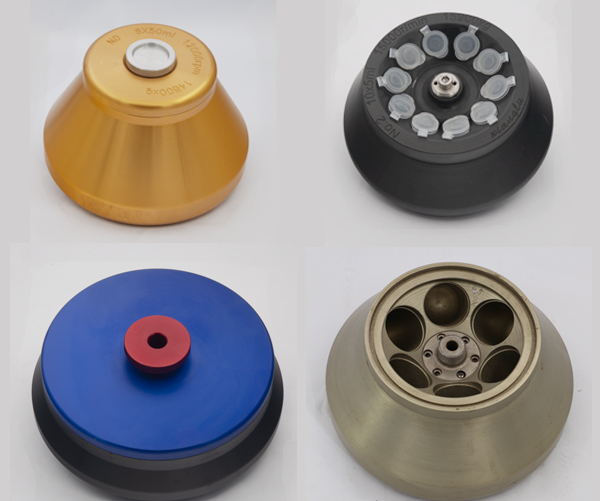

Extensive selection of rotors for microtubes in fixed angle or swing format 6×1000 ml vials as well as various barrels and adapters. As a result, the centrifuge supports a variety of applications that can be achieved with a single instrument. It has lockable casters for easy leveling and cleaning.

Designed for multi-user environments, this centrifuge is ideal for high volume harvests in cellular and molecular biology work, clinical preparation, industrial applications, academic and scientific separation applications, and more. As such, it is ideal for everything from simple various experimental precipitation separations to filtration, concentration, precipitation, density gradient separations, and more.

Features

Adopt microcomputer processor for precise control, digital / LCD touch display, key programming, conversion of operating parameters and RCF value.
Adopting carbon brushless high torque frequency conversion motor, no dust pollution, maintenance-free, fast rise and fall speed.
Fluorine-free compressor unit, double-cycle refrigeration, strong heat and cold exchange capacity, precise temperature control, and fast cooling.
Equipped with a variety of rotating heads for selection, and can design different specifications of rotors according to test requirements, three-stage vibration reduction, and the best centrifugal effect.
The body is made of high-quality steel structure, built-in anti-riot protection inner sleeve stainless steel centrifugal chamber, safe and reliable, easy to use.
Door cover independent motor servo, reduce operator safety and automatic protection for over-speed, over-temperature, unbalance.
10 sets of programs can be stored and recalled, and 10 kinds of lifting speeds are available for selection.

Application

Molecular biology, cell biology, clinical applications, bioengineering,
high-volume preparation, blood, protein precipitation and other high-tech fields.

Download Rotors Data

Floor High Speed Refrigerated Centrifuges

KT- GL10M

Download Rotors Data

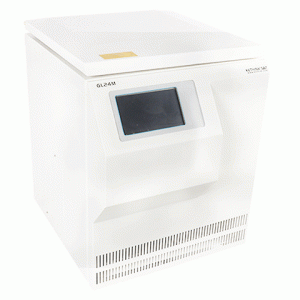

KT-GL24M

Download Rotors Data

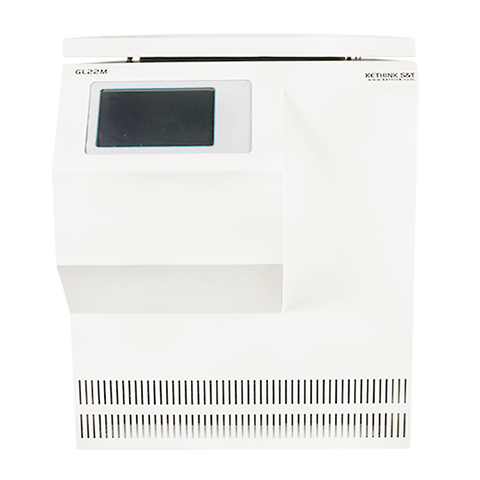

KT-GL22M

Download Rotors Data

KT-GL21M

Download Rotors Data

Model	Max Speed	Max RCF	Max Capacity	Temp Range	Temp Accuracy	Timer Range	Display	Motor	Power	Compressed Units	Noise
KT-GL10M KT-GL10MR	10000 rpm	18368xg	6*1000ml	-20°C ~ +40°C	±1°C	1 ~ 9h59min/99h59min	LED/LCD	AC frequency conversion	220V 50HZ 30A,5.5KW	imported environmentally friendly refrigerant	≤65dB（A）
KT-GL16M KT-GL16MR	16000 rpm	28948xg	6*500ml	-20°C ~ +40°C	±1°C	1 ~ 9h59min/99h59min	LED/LCD	AC frequency conversion	220V 50HZ 30A,4.0KW	imported environmentally friendly refrigerant	≤62dB（A）
KT-GL18M KT-GL18MR	18000 rpm	32916xg	6*500ml	-20°C ~ +40°C	±1°C	1 ~ 9h59min/99h59min	LED/LCD	AC frequency conversion	220V 50HZ 30A,4.0KW	imported environmentally friendly refrigerant	≤62dB（A）
KT-GL21M KT-GL21MR	21000 rpm	47458xg	6*500ml	-20°C ~ +40°C	±1°C	1 ~ 9h59min/99h59min	LED/LCD	AC frequency conversion	220V 50HZ 30A,4.0KW	imported environmentally friendly refrigerant	≤62dB（A）
KT-GL22M KT-GL22MR	22000 rpm	48276xg	6*500ml	-20°C ~ +40°C	±1°C	1 ~ 9h59min/99h59min	LED/LCD	AC frequency conversion	220V 50HZ 30A,4.0KW	imported environmentally friendly refrigerant	≤62dB（A）
KT-GL24M KT-GL24MR	24000 rpm	61839xg	6 *500ml	-20°C ~ +40°C	±1°C	1 ~ 9h59min/99h59min	LED/LCD	AC frequency conversion	220V 50HZ 30A,4.0KW	imported environmentally friendly refrigerant	≤62dB（A）
KT-GL26M KT-GL26MR	26000 rpm	65530 xg	6 *500ml	-20°C ~ +40°C	±1°C	1 ~ 9h59min/99h59min	LED/LCD	AC frequency conversion	220V 50HZ 30A,4.0KW	imported environmentally friendly refrigerant	≤62dB（A）

Features

Dual-core processors to realize both high &low speed, size and capacity compatibility, and is the best choice for current international biological research.
Imported fluorine-free compressor unit, dual-cycle refrigeration, strong cold & heat exchange capacity, no environmental pollution, precise temperature control, the sample temperature is always kept at -4°C or below at the highest speed.
Brushless frequency conversion motor, maintenance-free, high torque, fast lifting speed.
Precisely controlled by a microcomputer processor, LCD touch/digital display of speed, temperature, time and other parameters, button programming, parameters can be modified during operation, switching display of operating parameters and RCF values.

Door cover adopt independent motor servo, automatic electric induction door lock, emergency unlock function; over speed, over temperature automatic protection, unbalance protection, instrument abnormal automatic shutdown protection and display error code; the body is made of high-quality steel structure, built-in stainless steel explosion-proof protection of the inner sleeve, three-layer protection makes it more safe and reliable
Unique spring taper sleeve to connect the rotor and the spindle, the installation and disassembly of the rotor is quick and easy, non-directional, safe and reliable, and easy to use.
10 sets of programs can be stored and recalled, the last set of running programs are automatically memorized, and 10 rising and falling rates are available for selection.
