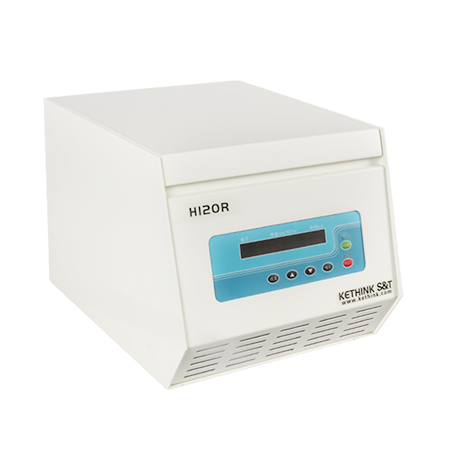

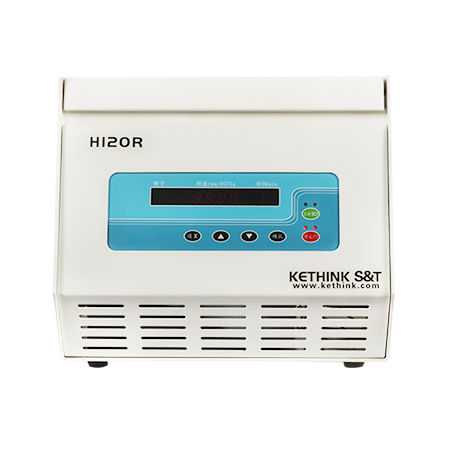

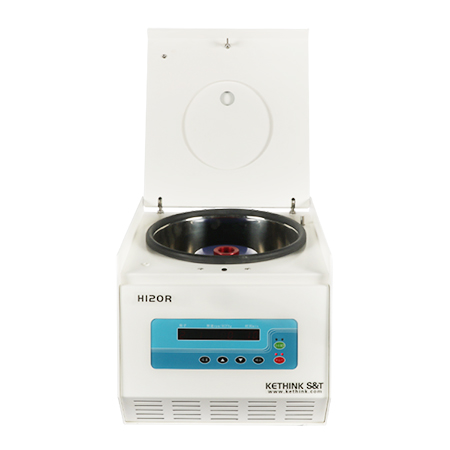

Medical Equipment Centrifuge, High speed 12000rpm

Medical Equipment Centrifuge, High Speed 12000rpm

Model: KT-H120R(LED/LCD)
Max Speed: 12000rpm
Max RCF: 14856xg
Max Capacity: 12* 10ml
Speed Accuracy: ± 10rpm
Timer Range: 1-99min/9h59m
Display: LED/LCD
Noise: ≤55db
Power: 450W
Motor: AC Inverter motor
Power Supply: AC 220V 50HZ 10A
Net Weight: 32kg
Device Dimension: 240*250*270mm ( L*W*H )

SEND INQUIRY

Description

It is a high capacity, high speed Medical Equipment Centrifuge: Max speed 12000 rpm. The body adopts high quality steel structure. Built-in stainless steel inner cavity and stainless steel explosion-proof protection inner sleeve. Fitted with microprocessor based single lines 10 characters LCD/LED pannel for 0-59 minutes countdown timer, digital rpm meter and programmable speed controller.

Feature

Microcomputer control, high torque maintenance-free AC frequency conversion motor, independent motor for door cover.
Connect rotor and bearing with spring cone sleeve, quick and easy to load and unload the rotor, non-directional, safe and reliable.

The body adopts high-quality steel structure, built-in stainless steel inner cavity, stainless steel explosion-proof protective inner sleeve.

Three-level shock absorption, with automatic protection: over-speed and unbalance etc, with a variety of rotor options.

Dynamic brake, electronic auto lid lock, imbalance auto detector & alarming.

9 angle rotors for choice and 9 programme memory, auto detect rotor and recall corresponding program parameters.

3 acceleration ad 3 decelerations, overspeed alarming.

A Centrifuge in a Medical Equipment Rotates Specification

NO	ITEM	MAX SPEED (rpm)	MAX RCF (Xg )	VOLUME(ml)	TUBE SIZE (mm)
N0.1	Angle rotor	12000rpm	14856xg	12*1.5/2.2ml	Φ10*42
N0.2	Angle rotor	11000rpm	14528xg	8*5ml	Φ14*54
N0.3	Angle rotor	11000rpm	14528xg	10* 5ml	Φ14*54
N0.4	Angle rotor	11000rpm	14365xg	12*7ml	Φ15*62
N0.5	Angle rotor	11000rpm	14218xg	12*10ml	Φ25*94
N0.6	Angle rotor	10000rpm	11840xg	8*15ml	Φ16*118
N0.7	Angle rotor	10000rpm	12830xg	6*30ml	Φ25*94

Related Product

Medical Equipment Centrifuge

Medical Lab Centrifuge

The highlight feature of KT-TD6AWS digital display Medical laboratory centrifuge with max speed 6000rpm is its extraordinary auto-balance function & versatility.

Medical Centrifuge Machine

It is a high capacity, high-speed Medical Centrifuge Machine: low speed 5500 rpm. The body adopts high-quality steel structure.

Lonn Howard

This medical centrifuge has exceeded my expectations. I never buy without thoroughly researching the build quality, price point, features, and reviews of various machines. When I make a final decision I’m confident that I’m making a sound choice. This device is an excellent blend of quality and price.

Very satisfied

Great centrifuge, runs smooth and works perfect . Very satisfied. It runs quietly, automatically stops and opens on the timer

T

I am so impressed. I feel like a mad scientist spinning up my own prp in this and I am so glad I got this one. No complaints. It’s cheap at all it’s sturdy and runs so smooth.

Conclusion

A centrifuge is a device used to separate mixtures made up of parts with different densities. In the medical field, centrifuges are mainly used in laboratories to prepare samples for analysis. For example, a centrifuge is used to separate plasma from blood. They are equipped with a rotor in which the samples to be prepared are placed.

There are different types of centrifuges on the market. Each type is linked to one or more specific applications. It is so very important to take this into account when choosing a centrifuge.

Explore our selection of centrifuge or submit a custom quote request for the perfect centrifuge for your needs. For more information about custom and standard centrifuge from KETHINK, contact us.
