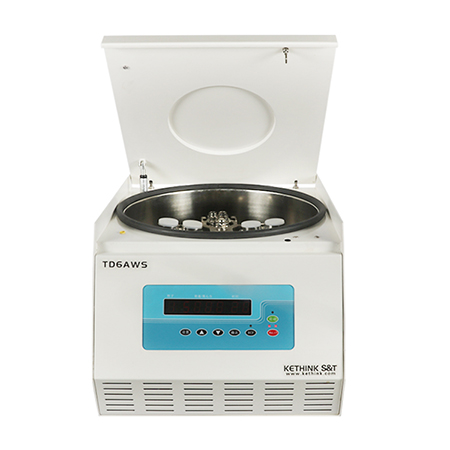

Medical lab centrifuge, low speed 6000PRM
- Model NO: KT-TD6AWS(LCD) KT-TD6AMR(LED)
- Max Speed: 6000rpm
- Max RCF: 5180xg
- Max Capacity: 4 * 800ml
- Speed Accuracy: ± 20rpm
- Timer Range: 1-99min/9h59m
- Display :LED/LCD
- Motor: AC Inverter Motor
- Power: 700W AC 220V 50HZ 10A
- Noise: ≤62dB(A)
- Net Weight: 48Kg
- Dimensions: 620 *520 * 390mm(L*W*H)
Description
The highlight feature of KT-TD6AWS digital display Medical laboratory centrifuge with max speed 6000rpm is its extraordinary auto-balance function & versatility. Centrifuge tubes placed in symmetrical positions in the rotor can be auto balanced if the total capacity difference is less than 20g.
The KT-TD6AWS is a versatile low-speed lab centrifuge that can be used in many lab experiments. With various standard angle rotors & horizontal swing rotors, it can be used to centrifuge components that require lower rotating speed and less volume. i.e. It can be used for PRP preparation too. Set speed to 3500rpm-4000rpm and select our NO1-NO9 angle rotors that can easily separate platelet-rich plasma of microvolume for facial treatment or big volume for body sculpturing.
Feature
- Adopt maintenance-free DC brushless motor,ultra-low noise.
- Microcomputer control, intelligent interface and fault display can be set at any speed.
- Various automatic protection functions,i.e. door cover and over-speed to ensure safety use.
- A variety of rotors are available for selection.
- Stable operation, low vibration.
- The body adopts high-quality steel structure, built-in stainless steel inner cavity, explosion-proof protective inner sleeve.
A centrifuge in a medical laboratory rotates Specification
NO | ITEM | MAX SPEED(rpm) | MAX RCF(xg) | CAPACITY(ml) | TUBE SIZE(mm) |
NO.1 | Angle rotor | 6000rpm | 5180xg | 12* 10ml | Φ16 *87 |
NO.2 | Angle rotor | 5000rpm | 2540xg | 6 *15ml (option 5/7/10ml) | Φ16*118 |
NO.3 | Angle rotor | 5000rpm | 3080xg | 12* 15ml (option 5/7/10ml) | Φ16*118 |
N0.4 | Angle rotor | 5000rpm | 3515xg | 24 * 15ml (option 5/7/10ml) | Φ16*118 |
NO.5 | Angle rotor | 5000rpm | 3830xg | 30*15ml (option 5/7/10ml) | Φ16*118 |
N0.6 | Angle rotor | 5000rpm | 2520xg | 4 * 50ml | Φ29*106 |
NO.7 | Angle rotor | 5000rpm | 2850xg | 6 * 50ml | Φ29*106 |
NO.8 | Angle rotor | 5000rpm | 2630xg | 4* 100ml | Φ37*124 |
NO.9 | Angle rotor | 5000rpm | 3130xg | 6 * 100ml | Φ37*124 |
NO.10 | Horizontal Rotor | 4200rpm | 3157xg | Rotor body | – |
Tube Rack | 4200rpm | 4200rpm | 4*8* 5/7ml | Φ13*95 | |
Tube Rack | 4200rpm | 4200rpm | 4*8*10/15ml | Φ16 * 87 | |
Tube Rack | 4200rpm | 3157xg | 4 * 2*50ml | Φ29*106 | |
Tube Rack | 4200rpm | 4200rpm | 4 * 1* 100ml | Φ37*124 | |
Tube Rack | 4200rpm | 4200rpm | 4*2*100ml | Φ37*124 | |
NO.11 | Horizontal Rotor | 4000rpm | 3016xg | 4 * 250ml 4 hanging cups | Φ64*125 |
Adapter | 4000rpm | 3016xg | 4*8* 5/7 ml | Φ13*95 | |
Adapter | 4000rpm | 3016xg | 4*8*10/15ml | Φ16*135 | |
Adapter | 4000rpm | 3016xg | 4*2 *50ml | Φ29*106 | |
Adapter | 4000rpm | 3016xg | 4 * 1 * 100ml | Φ37*124 | |
Adapter | 4000rpm | 3016xg | 4*2* 100ml | Φ37*124 | |
NO.12 | Horizontal Rotor | 4000rpm | 3515xg | 4* 500ml 4 hanging cups | Φ78*150 |
Adapter | 4000rpm | 3515xg | 4*4*50ml | Φ37*124 | |
Adapter | 4000rpm | 3515xg | 4* 12 * 5/7ml | Φ13*95 | |
Adapter | 4000rpm | 3515xg | 4*16* 5/7ml | Φ16*87 | |
Adapter | 4000rpm | 3515xg | 4*16*10/15ml | Φ29*106 | |
Adapter | 4000rpm | 3515xg | 4 * 2 * 100ml | Φ37*124 | |
Adapter | 4000rpm | 3515xg | 4*3 *100ml | Φ37*124 | |
Adapter | 4000rpm | 3515xg | 4*1* 250ml | Φ64*114 | |
NO.13 | Horizontal Hanging Rotor | 4000rpm | 3016xg | 4* 18*5/7ml | Φ13*95 |
NO.14 | Horizontal Hanging Rotor | 4000rpm | 3016xg | 4*24* 5/7ml | Φ13*95 |
NO.15 | Horizontal ELISA Plate Rotor | 4000rpm | 2310xg | 2*2*48 hole | |
NO.16 | Horizontal ELISA Plate Rotor | 4000rpm | 2310xg | 2*2*96 hole | |
NO.17 | Horizontal ELISA Plate Rotor | 4000rpm | 2490xg | 4*2*96 hole | |
NO.18 | Horizontal ELISA Plate Rotor | 4000rpm | 2850xg | 4*4*96 hole |
Related Product
Medical Equipment Centrifuge
Medical Lab Centrifuge
Medical Centrifuge Machine
What Our Clients Say
Related Blog
No posts
Conclusion
A Medical laboratory centrifuge is a motor-driven device that spins liquid samples at high speed. Centrifuges may be used in laboratories, hospitals or industry to extract suspended material from a medium. Commonly used to separate solids from fluid suspension mediums, they are an important instrument in medical laboratories for separating plasma or serum from blood samples.
Explore our selection of centrifuge or submit a custom quote request for the perfect centrifuge for your needs. For more information about custom and standard centrifuge from KETHINK, contact us.
