Incubator shaker integrates multiple functions such as constant temperature cultivation and oscillation together. It provides a wide range of temperature capabilities and accurate shaking speed to meet specific cell growth experiment enviroments. The main purpose is the culture of microorganisms or cells and physiological and biochemical reactions. KETHINK provides an industry leading warranty of 2 years, 5 years on parts.
Reliability
Reliable DC brushless motor and unique dynamic balancing technology ensures 24-hours smooth and consisten shaking and incubating experience.
Simplicity
Easy-to-operate design plus transparent large scratch resistant lid makes it easy to control temperature,speed, time and status visible.
Flexibility
Sophisticated chamber design with multiple optional plates ensures it suitable for a broad range of lab applications. Samples in tube, petri dish, beaker, Elisa plate etc can be cultured in the heated sealed chamber. Integrated heating and shaking functions together, also allows them work Independently under special application requirements which provide users maximum flexibility and convenience.
Incubator shaker principle
The shaker is mainly composed of a group of driving mechanisms and a control system. The speed is adjusted by adjusting the knob on the panel, the voltage is set, and the power supply voltage of the driving device is changed through the control of the PID closed-loop adjustment system, thereby changing the output speed of the motor. The mechanism pulls the shaker to perform turnover motion at the set speed. The orbital shakers’ mechanism involves a motor attached to a platform that holds the vessels as thakes to blend, agitate, or mix substances in the vessels.

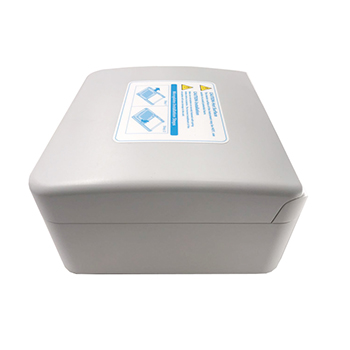

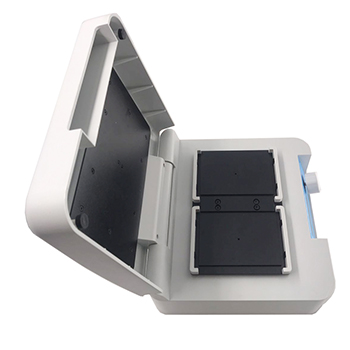

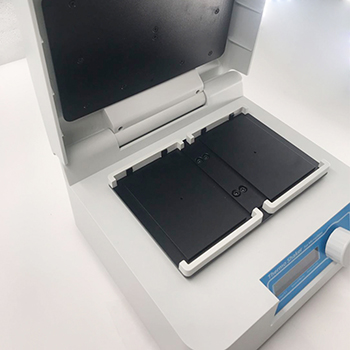

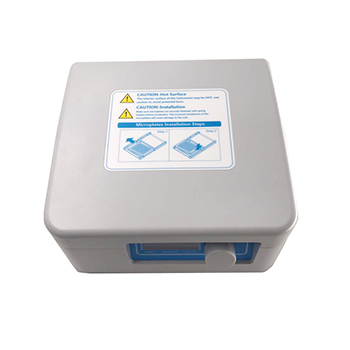

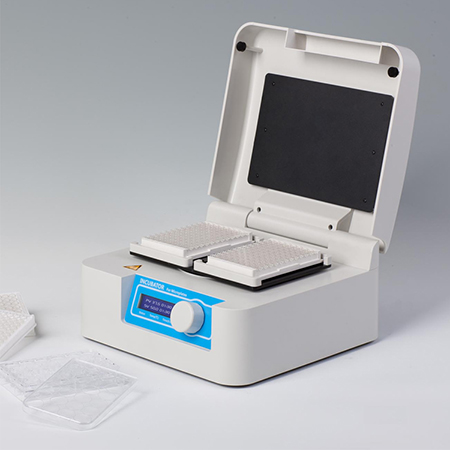

KT-TS200 Bechtop Incubator Shaker for Microplates is a laboratory instrument combines two functions of constant temperature heating and oscillation. It adopts brushless DC motor and PID intelligent temperature control technology. Mainly used for incubating and mixing samples in enzyme plate (96-well/384-well), Cell culture plates (24-well plates, 48-well plates, etc.).Its widely used in various experiments such as immunoassays and staining experiments.
Model NO: KT-TS200
MOQ: 1 set
Price: negotiable
Block: customized blocks available
Warranty: 2 years for free,technical support for life
Packing: carton box with anti-shock foam
Payment: TT, paypal,western union
Delivery: within 5-7working days
The machine is ideal for accurately setting and controlling temperature. By optimizing stable heating elements , it achieves more accurate temperature control effect. The preset temperature function saves your lab work time. The microwell design can store & culture samples separately, and supports module classification and custom calibration functions. Its chamber can accommodates 2 microplates or 2 deep well plates . Variable speeds can be adjusted to suit various applications. In the eELISA reaction, shaking the solution manually can easily cause the liquid to shake out of the well. The machine vibration amplitude is only 3mm. By using this microplate incubator shaker, liquid sample will not be shaked out of the hole, mixing effect is better.
Technical Data
| TypeParameter | KT-TS200 |
| Temp. range | RT.+5℃ ~80℃ |
| Timing range | 1min ~ 99h59min |
| Speed range | 200～1600rpm |
| Orbit | 3mm |
| Temp. Accuracy | ≤±0.5℃ |
| Display Accuracy | 0.1℃ |
| Temp. Uniformity | ≤±0.5℃ |
| Heating time | ≤10min(from RT. to 80℃) |
| Sample capacity | 2pcs microplates or culture plates |
| Heating part | Heating film |
| Power | 150W |
| Voltage | AC220V or 110V/50~60Hz |
| Dimension(mm) | 280*270*140 |
| Weight(kg) | 7.0 |
Features
- LCD displays system status and parameters.
- Stable and reliable operation with high quality switch.
- Easy to operate with one touch knob.
- Set-up the time within 0~100hours, instrument will make alarm voice when completing.
- With power recovery, instrument will be continuous to run when power recovers from outage.

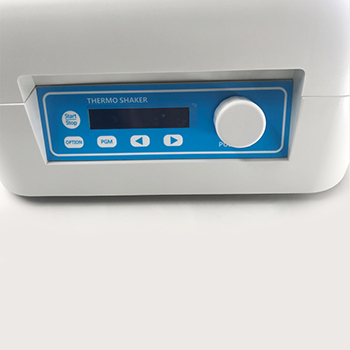

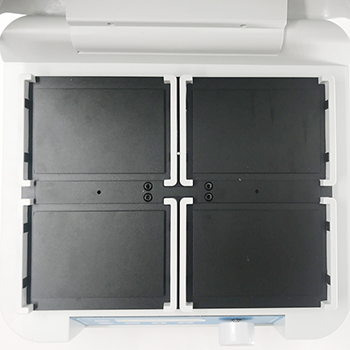

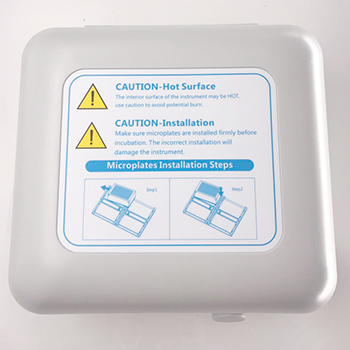

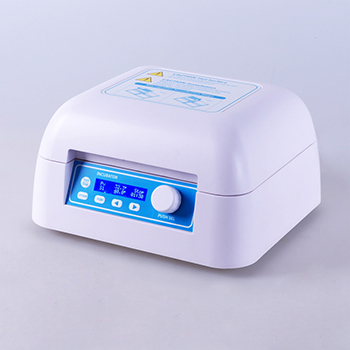

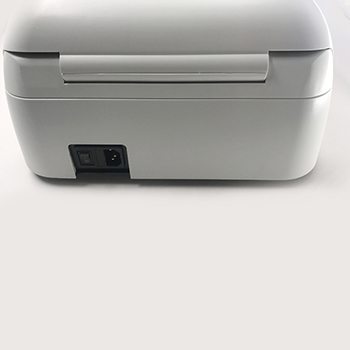

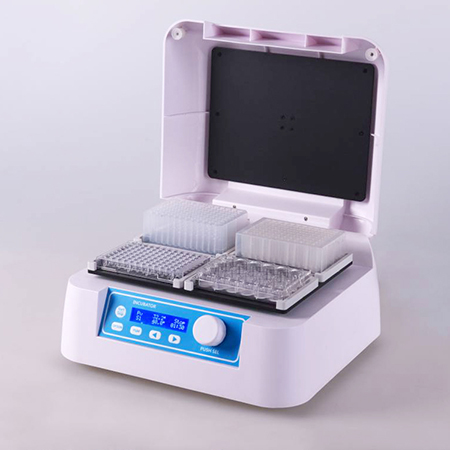

KT-TS300 plate shaker incubator chameber can accomondates 4 micro plates/ 4 deep well plates. It adopts DC brushless motor and microcomputer control technology, it can realize high-speed oscillation for microplate and cell culture plate. The hot lid heating design can effectively prevent the sample from condensation and keep the sample stable. The highest temperature reaches over 80 degrees,rotate by horizontal way, one-button operation function makes it convenient and simple to use. Auto temperature calibration function ensure accurate sample heating effect at any time.
- Maintaining 14°C for ligation reactions.
- Maintaining 17°C for storing oocytes.
- Storing samples at ice bucket temperatures.
- Storing enzymes or DNA libraries at your workstation.
- Transporting samples from the field at exactly the right temperature.
- Heating samples in the field.
- Enzyme reactions and deactivations.
- PCR sample preparation.
Technical Data
| Model | KT-TS300 |
| Temp setting range | 0℃~80℃ |
| Temp control range | RT+5℃~80℃ |
| Time range | 1min ~ 99h59min/∞ |
| Temp accuracy | ≤±0.5℃* |
| Display accuracy | 0.1℃ |
| Temp uniformity | ≤±0.5℃* |
| Speed range | 300~1350rpm |
| Orbit | 3mm |
| Heating time | ≤10min(from 25℃ to 80℃)* |
| Auto preheating | Yes |
| Auto resume to run | Yes |
| Capacity | 4 Microplates or Deepwell plates |
| Power supply | 300W |
| Voltage | AC220V or AC110V /50-60HZ |
| Fuse | 250V 3A Ф5×20 |
| Dimension(mm) | 340*320*200 |
| Weight | 9.5kg |
Features
With the continuous development of biological science, there is a higher demand for various laboratory biochemical instruments. KT-TOS20 table top incubator shaker (hood style) can provide a long-term stable culture environment for different types of cells, reduce the troublesome process of doing experiments, and greatly improve the efficiency of cell culture and detection.
- Model NO: KT-TOS20
- MOQ: 1 set
- Price: negotiable
- Block: customized blocks available
- Warranty: 2 years for free,technical support for life
- Packing: carton box with anti-shock foam
- Payment: TT, paypal,western union
- Delivery: within 5-7working days
It is widely used in bacterial suspensions, hybridisations, staining and de-staining, metabolism studies and cell culturing.
It can be considered a mix of an incubator and a shaker. It has an ability to shake while maintaining optimal conditions for incubating microbes or DNA replications. Constant temperature control function provide the best growth temperature and shaking function provide sufficient oxygen ,make the bacteria reproduce uniformly, improve culture efficiency. Microbial culture includes: bacteria, viruses, fungi, and some small protists, microscopic algae, etc., a large group of biological groups. KT-TOS20 table top incubator shaker can culturethe following microbial (not limited to):
1)Escherichia coli culture (culture conditions: 30-37 degrees, 6-8 hours, RPM200-250);
2)fungal culture (RPM<200, 30-35 degrees);
3) virus culture (culture conditions: RPM150- 200, 27-28 degrees, 1-2 days);
Technical Data
| Parameter | KT-TS200 | KT-TS300 | KT-TOS20 | KT-TOS30 |
| Temperature setting range | – | – | 0°C ~60°C | 0°C ~60°C |
| Temperature control range | RT.+5°C ~80°C | RT.+5°C ~80°C | RT.+5°C ~60°C | RT.+5°C ~60°C |
| Time range | 1min ~ 99h59min/∞ | 1min ~ 99h59min/∞ | 1min ~ 99h59min/∞ | 1min ~ 99h59min/∞ |
| Temp. accuracy | ≤±0.5°C | ≤±0.5°C | ≤±0.5°C(@37°C) | ≤±0.5°C(@37°C) |
| Display accuracy | 0.1°C | 0.1°C | 0.1°C | 0.1°C |
| Temp. uniformity | ≤±0.5°C | ≤±0.5°C | ≤±0.5°C(@37°C) | ≤±0.5°C(@37°C) |
| Shaking range | 200～1600rpm | 300～1350rpm | 50~300rpm | 50~250rpm |
| Orbit | 3mm | 3mm | 20mm | 20mm |
| Platform dimension | – | – | 230*230mm | 350*350mm |
| Internal chamber height | – | – | 182mm | 325mm |
| Load capacity | 2pcs microplates or culture plates | 4pcs microplates or culture plates | 4.0kg | 10.0kg |
| Heating part | Heating film | Heating film | – | – |
| Heating time | ≤10min(from RT. to 80℃) | ≤10min(from RT. to 80℃) | ≤15min(from 25°C to 60°C) | ≤20min(from 25°C to 60°C) |
| Auto resume to run | – | – | Yes | Yes |
| Power | 150W | 300W | 350W | 600W |
| Voltage | – | – | AC220V/50-60HZ | AC220V/50-60HZ |
| Fuse | – | – | 250V 3A Ф5×20 | 250V 3A Ф5×20 |
| Dimension(mm) | 280*270*140 | 340*320*200 | 421*320*338 | 632*502*512 |
| Weight(kg) | 7.0 | 9.5 | 18.5 | 41 |
KT- TOS30 Accessories
| Type | Description |
| PF-1 | Platform with clamps for 5×250ml conical flask |
| PF-2 | Platform with clamps for 9×100ml conical flask |
| PF-3 | Platform with clamps for 10×50ml tube |
| PF-4 | Platform with clamps for 18×15ml tube |
| PF-5 | Platform with spring holder |
| PF-6 | Platform for 4pcs Elisa plates or deep-well plates |
| PF-7 | Flat platform for 5pcs petri dishes |
KT-TOS30 laboratory shaker incubator share with same fucntion with KT-TOS20, but its chamber is larger and can accomondates larger plate with samples. Compared with traditional incubators, KT-TOS30 is designed with a compact constant temperature space, which can ensure better temperature uniformity and less vibration noise during the experiment. The light blue transparent lid can easily observe the status of sample culture. The lid also has a sensitive micro-movement design. Once the lid is opened, the heating and oscillation functions will automatically stop. It integrates heating and shaking functions into one, and small in size, which effectively saves laboratory space. 4 kinds of platforms can meet the needs of micro cell culture experiment commonly used in laboratories. High quality rubber non-slip feet grip the lab table firmly when the machine vibrates.
Model NO: KT-TOS30
MOQ: 1 set
Price: negotiable
Block: customized blocks available
Warranty: 2 years for free,technical support for life
Packing: carton box with anti-shock foam
Payment: TT, paypal,western union
Delivery: within 5-7working days
Technical Data
| Parameter | KT-TOS30 |
| Temperature setting range | 0°C ~60°C |
| Temperature control range | RT.+5°C ~60°C |
| Time range | 1min ~ 99h59min/∞ |
| Temp. accuracy | ≤±0.5°C(@37°C) |
| Display accuracy | 0.1°C |
| Temp. uniformity | ≤±0.5°C(@37°C) |
| Shaking range | 50~250rpm |
| Heating time | ≤20min(from 25°C to 60°C) |
| Orbit | 20mm |
| Platform dimension | 350*350mm |
| Internal chamber height | 325mm |
| Load capacity | 10.0kg |
| Auto resume to run | Yes |
| Power | 600W |
| Voltage | AC220V or AC110V/50-60HZ |
| Fuse | 250V 3A Ф5×20 |
| Dimension(mm) | 632*502*512 |
| Weight(kg) | 41 |
What is a shaker incubator?
A shaker incubator is a biochemical instrument combined with an incubator and an oscillator. It has stainless steel universal fixtures, digital display temperature control, stepless speed regulation and good thermal cycle functions. It is a multi-purpose biochemical device for lab applicaions.
Why do we use shaker in incubator?
A shaker incubator integrates incubating and shaking functions together. This versatile device is the perfect choice if heat and shake are frequently used during experiments. It can effectively save laboratory space, and there is no need to put the shaker with the sample in the incubator.
A shaker incubator is widely used in biology, chemical reaction, bacterial culture, fermentation, hybridization, enzyme, cell tissue research, etc.It can be used for sports culture and static culture of microbial cells and various strains. It has extensive and important applications in research and application fields such as biology, molecules, medicine, pharmaceuticals, food, and environmental protection.
What is the difference between incubator and incubator shaker?
Shaking incubators are designed to simultaneously incubate and shake or agitate samples.To prevent uneven precipitation of the experimental liquid, the shaker needs to be shaken all the time. Incubators only has the function of heating and constant temperature.
How does a laboratory shaker work?
A laboratory shaker typically works by creating a shaking motion. This occurs at low speeds of 50-300 rpm. An oscillating board is inside of the shaker that will hold the test tubes, flasks or beakers. These vessels, as well as the device, shakes to mix, blend or agitate the substances that are inside of the tubes. Laboratory shakers will condense two different processes into one substance. These shakers are a small, one stop product that is perfect for life science and molecular laboratories.
