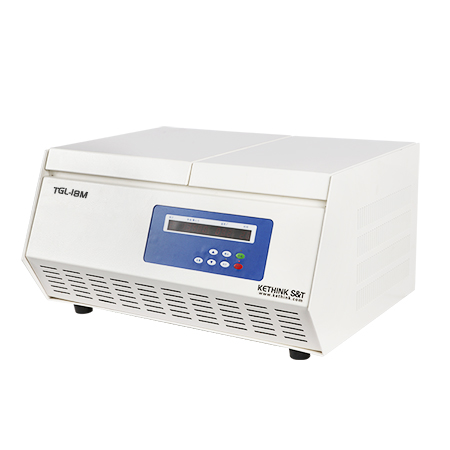

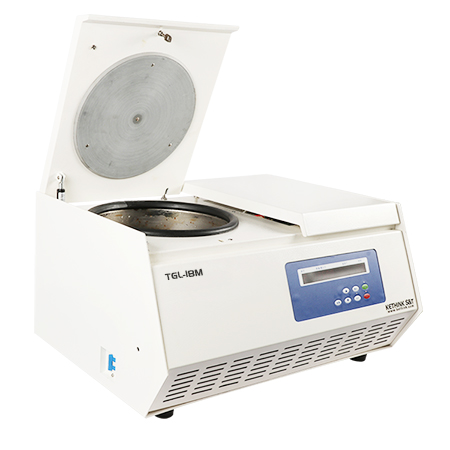

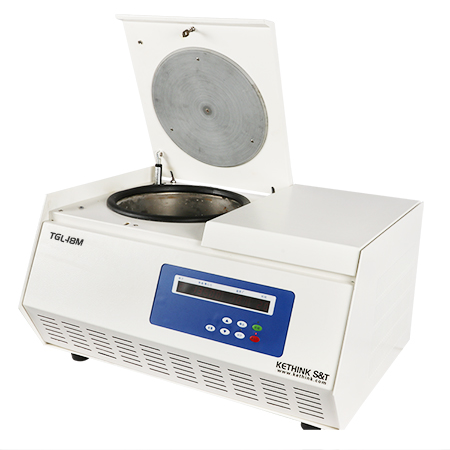

Refrigerated Table Top Centrifuge

table top refrigerated centrifuge
  • table top refrigerated centrifuge

    • Refrigerated table top centrifuge, high speed 18000rpm

    • Model: KT-TGL18M(LED) KT-TGL18MR(LCD)
    • Max Speed: 18000rpm
    • Max RCF: 23566xg
    • Max Capacity: 6*100ml
    • Speed Accuracy: ± 10rpm
    • Temperature Range: -20°C 〜+40°C
    • Temperature Accuracy: 士1°C
    • Display: LED/LCD
    • Timer Range: 1-99min/9h59min
    • Motor: AC brushless motor
    • Power Supply: AC 220V 50HZ 10A
    • Compressed Units: Imported environmentally friendly refrigerant
    • Full Power: 1000W
    • Noise: ≤62db
    • Device Dimension: 510 * 630 * 380mm(L*W*H)
    • Net Weight: 95kg
    SEND INQUIRY

    Description

    KT-TGL18M tabletop refrigerated centrifuge is a medium-capacity centrifuge used for the separation of milliliter temperature-sensitive samples in a molecular biology lab, biotechnology lab, and clinical lab. Provide various rotor types that can easily load and spin at high speed, the maximum speed is 18000rpm. Temperature ranges from -20°C to +40°C to ensure safe storage in the centrifuge without contamination and deterioration. Its automatic, motorized locking lid makes loading and closing effortless. A total of 25 rotors options that can accommodate tube size types from 0.2ml to 100ml makes it optimal versatile lab equipment in medium-capacity & sensitive applications.

    Feature

    • Multiple rotating heads for selection can design various adapters according to the test requirements, multi-purpose, three-stage vibration reduction to ensure the optimal centrifugal effect.
    • The unique design of the spring cone sleeve to connect the rotor and the spindle, loading and unloading the rotor is quick and simple, non-directional, safe and reliable, and easy to use.
    • The independent motor servo of the door cover reduces the operator’s labor intensity, automatic protection for over-speed and over-temperature, unbalanced protection, and the body adopts a high-quality steel structure.
    • Using a microcomputer processor for precise control, digital display of speed, temperature, time, and other parameters, key programming, switching display operating parameters and RCF value, 10 sets of programs can be stored and recalled, and 10 kinds of lifting rates are available for selection.
    • Adopt carbon-free brush frequency conversion motor, maintenance-free, high torque, fast lifting speed. The fluorine-free compressor unit is adopted, which has no environmental pollution and precise temperature control.

    Refrigerated Centrifuge Rotor Specifications

    NOITEMMAX SPEED(rpm)MAX RCF(xg)VOLUME(ml)TUBE SIZE(mm)
    N0.1Angle rotor18500rpm23810xg12*1.5/2.2mlΦ10*42
    N0.2Angle rotor16000rpm20653xg24*1.5/2.2mlΦ10*42
    N0.3Angle rotor14000rpm19450xg30*1.5/2.2mlΦ10*42
    N0.4Angle rotor13000rpm17930xg48*1.5/2.2mlΦ10*42
    N0.5Angle rotor15000rpm18510xg30*0.2/0.5mlΦ8*30
    NO.6Angle rotor14000rpm19970xg48*0.2/0.5mlΦ8*33
    N0.7Angle rotor15000rpm19350xg8/10*5mlΦ14*54
    N0.8Angle rotor15000rpm19350xg16*5mlΦ14*54
    N0.9Angle rotor15000rpm13856xg3*8*0.2ml (PCR tube)Φ6*22
    NO.10Angle rotor14000rpm12826xg6*8*0.2ml (PCR tube)Φ6*22
    NO.11Angle rotor14000rpm16370xg12*7mlΦ15*62
    NO.12Angle rotor14000rpm16460xg6*10mlΦ16*87
    N0.13Angle rotor12000rpm14856xg12*10mlΦ16*87
    NO.14Angle rotor12000rpm13215xg8*15mlΦ16*118
    N0.15Angle rotor5000rpm3515xg24*15mlΦ16*118
    N0.16Angle rotor5000rpm3830xg30*15mlΦ16*118
    NO.17Angle rotor12000rpm14510xg8*20mlΦ22*104
    N0.18Angle rotor14000rpm16050xg6*30mlΦ25*94
    N0.19Angle rotor14000rpm16050xg4*50mlΦ29*106
    NO.20Angle rotor12000rpm15635xg6*50mlΦ29*106
    N0.21Angle rotor10000rpm10813xg6*70mlΦ32*150
    NO.22Angle rotor12000rpm15635xg4*100mlΦ37*124
    NO.23Angle rotor10000rpm11380xg6*100mlΦ37*124
    NO.24A ngle rotor12000rpm15869xg24pcs capillairesΦ4*100
    NO.25Horizontal ELISA plate rotor4000rpm2310xg2*2*48 hole–

    Related Product

    table top refrigerated centrifuge

    Refrigerated Table Top Centrifuge

    KT-TGL18M tabletop refrigerated centrifuge is a medium-capacity centrifuge used for the separation of milliliter temperature-sensitive samples in a molecular biology lab
    Read More
    1 2

    What Our Clients Say

    Conclusion

    Refrigerated centrifuges are used for samples that require temperature control. Whenever a refrigerated centrifuge is used, it is critical to maintaining a consistent temperature.

    Refrigerated centrifuges are widely used for medical purposes. It plays a vital role in biotechnology research laboratories. And, one of the most important aspects is that it meets the demands of high capacity and low speed.

    Explore our selection of refrigerated tabletop centrifuges or submit a custom quote request for the perfect centrifuge for your needs. For more information about custom and standard centrifuges from KETHINK, contact us.
