Low Temperature Centrifuge | KT-TDL6M

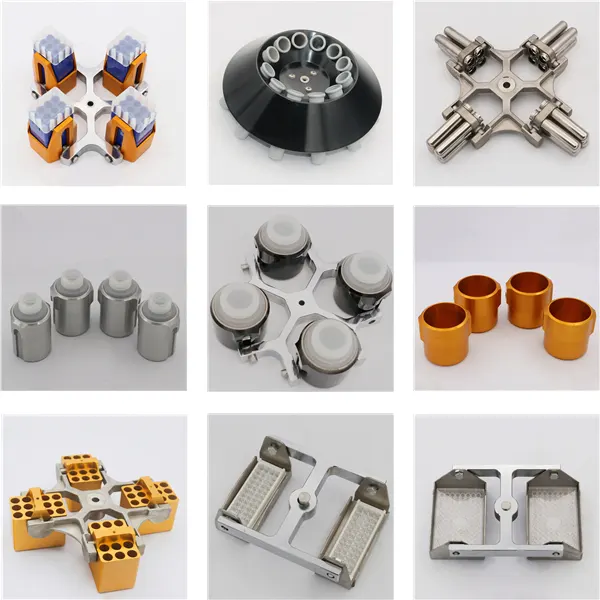

A low temperature controlled centrifuge is used to separate samples that is sensitive to spinning temperature in experiment. A temperature controlled centrifuge responds to the difference between a preset temperature for experiment requirement and the temperature of the sample, during the spinning process, maintain the sample at the preset temperature. KETHINK offers our customer the best choice for high performance and superior quality temperature controlled centrifuge. We provides a wide range of centrifuges and innovative customized rotors for all your sample processing needs.
Our low temperature centrifuge series temperature control ranges from -20°C ~ +40°C, it fits for most lab applications that require precise temperature control or a lower internal temperature during operation. They are the most reliable expert & trustable partner when seperation samples.
Features
Application
Separation and purification of radioimmunology, clinical medicine, biochemistry, biopharmaceuticals, and blood products.
Centrifuges Low Temperature
| Model | Max Speed | Max RCF | Max Capacity | Temperature Range | Timer Range | Power Supply | Output Power |
| KT-TDL6M(LED)/KT-TDL6MR(LCD) | 6000rpm | 5350xg | 4*800ml | -20°C 〜+40°C | 1〜99min/9h59min | AC 220V 50HZ 10A | 1KW |

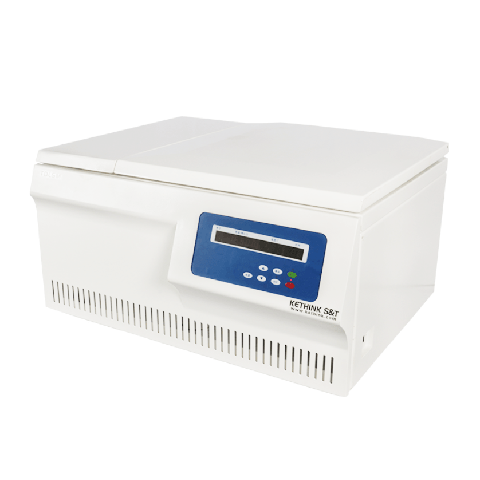

| KT-TDL5M(LED)/KT-TDL5MR(LCD) | 5500rpm | 4650xg | 4*750ml | -20°C 〜+40°C | 1 ~ 99min/9h59min | AC 220V 50HZ 10A | 1KW |
| KT-TGL16E(LED)/KT-TGL16ER(LCD) | 16000rpm | 17800xg | 4*500ml | -20°C 〜+40°C | 1-99m/9h59min | AC 220V 50HZ 10A | 1.2KW |

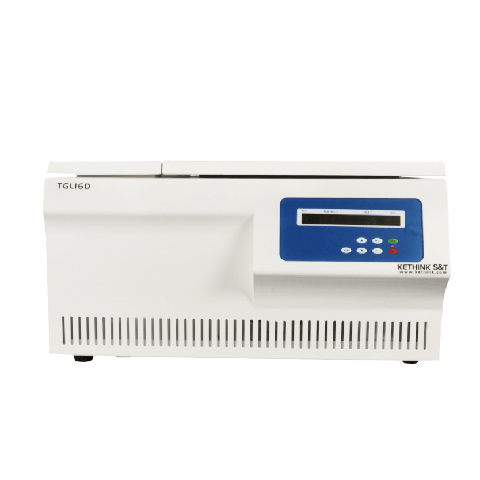

| KT-TGL16D(LED)/KT-TGL16DR(LCD) | 16500rpm | 18900xg | 4*500ml | -20°C 〜+40°C | 1-99m/9h59min | AC 220V 50HZ 10A | 1.2KW |
| KT-TGL18D(LED)/KT-TGL18DR(LCD) | 18000rpm | 26600xg | 4*500ml | -20°C 〜+40°C | 1-99m/9h59min | AC 220V 50HZ 10A | 1.3KW |
| KT-TGL20D(LED)/KT-TGL20DR(LCD) | 21000rpm | 30930xg | 4*750ml | -20°C 〜+40°C | 1-99m/9h59min | AC 220V 50HZ 10A | 1.4KW |
| KT-DL5M/KT-DL5MR(LED /LCD) | 5500rpm | 4650xg | 4*800ml | -20°C 〜+40°C | 1-99m/9h59min | AC 220V 50HZ 15A | 1.1KW |

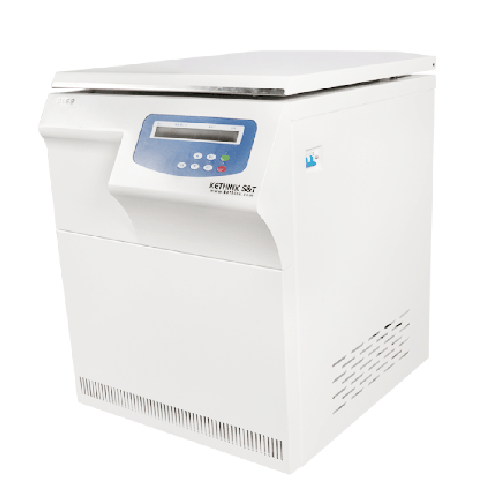

| KT-DL6B(LED/LCD) | 6000rpm | 6680xg | 4*1000ml | -20°C ~ +40°C | 1-99m/9h59min | AC 220V 50HZ 30A | 1.2KW |

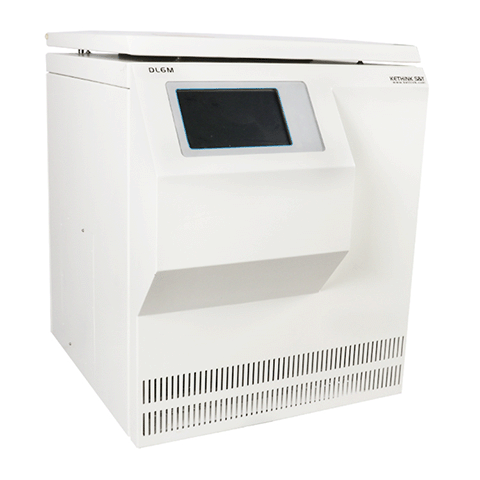

| KT-DL6M/DL6MR(LED/LCD) | 6000rpm | 6680xg | 6*1000ml | -20°C ~ +40°C | 1 ~ 99min/9h59min | AC 220V 50HZ 30A | 3.5KW |
High Temperature Centrifuge | KT-TDD5 KT-DD5A
Opposite to common room temperature / low temperature centrifuges, the temperature control ranges from +10°C~+70°C for KETHINK high temperature centrifuge with heating function. It is mainly used to separate the water in the oil. Also known as crude oil moisture determination centrifuge.
Features

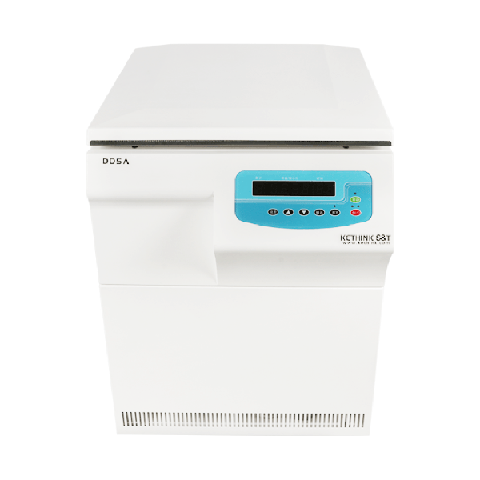

| Model | KT-TDD5 | KT-DD5A |
| Max Speed | 4000rpm | 4000rpm |
| Max RCF | 3215xg | 3215xg |
| Max Capacity | 4*100ml | 4 *200ml |
| Speed Accuracy | ± 10rpm | ± 10rpm |
| Timer Range | 1-99min/9h59min | 1 -99min/9h59min |
| Display | LED/LCD | LED/LCD |
| Temperature Range | Room temperature+10°C~+70°C | Room temperature+10°C~+70°C |
| Temperature Accuracy | ±5°C | ±5°C |
| Motor | AC frequency conversion | AC frequency conversion |
| Power Supply | 220V 50Hz 10A | 220V 50Hz 10A |
| Power | 550W | 800W |
| Noise | ≤60dB(A) | ≤65dB(A) |
| Device Dimension | 600*500*390mm(L *W*H) | 710*650*850mm (L*W*H) |
| Net Weight | 60kg | 110kg |
